PASSENGER HOIST

Equipment of this type allows lifting loads weighing about three tons to a height of 200-300 meters. The Czech concern Stros, which has been producing lifting equipment since 1960, offers cargo and passenger lifts with improved characteristics for construction, repair, and installation work.

Stros equipment compares favorably with analogs:

  • has an increased carrying capacity of up to seven tons;
  • allows using two cabins on one mast at once;
  • has several degrees of overturning protection
  • meets the requirements of the international quality standard ISO 9001.

GOODS & PASSENGER HOISTS

Stros produces a wide range of models for different tasks, including:

  • construction of high-rise buildings, residential complexes;
  • construction of industrial buildings;
  • repair of facades, roofs;
  • installation of engineering systems, etc.

The mast hoist for construction and repair work with a cabin for cargo and passengers, in contrast to mine devices, is easier to assemble and install.

The manufacturer paid special attention to control system, which is fully automated. The operator can select the lifting height, floor number, and adjust the speed of movement.

The catalog on the site contains more than 30 offers; the list is updated with the model range.

Passenger Hoists

NOV 1324 UP

Passenger Hoist

Max. height: 350 m
Max. weight: 1300 kg
Speed: 40 m/min
Open the category

NOV 1832 UP

Passenger Hoist

Max. height: 350 m
Max. weight: 2000 kg
Speed: 35 m/min
Open the category

NOV 1832-2 UP F4

Passenger Hoist

Max. height: 350 m
Max. weight: 1800 kg
Speed: 45 m/min
Open the category

NOV 1832-2 UP F5

Passenger Hoist

Max. height: 350 m
Max. weight: 1800 kg
Speed: 55 m/min
Open the category

NOV 1832-2 UP F7

Passenger Hoist

Max. height: 350 m
Max. weight: 1800 kg
Speed: 70 m/min
Open the category

NOV 1832-2 UP F9

Passenger Hoist

Max. height: 350 m
Max. weight: 1800 kg
Speed: 90 m/min
Open the category

NOV 2032 UP

Passenger Hoist

Max. height: 350 m
Max. weight: 2000 kg
Speed: 35 m/min
Open the category

NOV 2032 UP F4

Passenger Hoist

Max. height: 350 m
Max. weight: 2000 kg
Speed: 45 m/min
Open the category

NOV 2032 UP F5

Passenger Hoist

Max. height: 350 m
Max. weight: 2000 kg
Speed: 55 m/min
Open the category

NOV 2032 UP F7

Passenger Hoist

Max. height: 350 m
Max. weight: 2000 kg
Speed: 70 m/min
Open the category

NOV 2032 UP F9

Passenger Hoist

Max. height: 350 m
Max. weight: 2000 kg
Speed: 90 m/min
Open the category

NOV 2438-2 UP F5

Passenger Hoist

Max. height: 350 m
Max. weight: 2400 kg
Speed: 55 m/min
Open the category

NOV 2438-2 UP F7

Passenger Hoist

Max. height: 350 m
Max. weight: 2400 kg
Speed: 70 m/min
Open the category

NOV 2438-2 UP F9

Passenger Hoist

Max. height: 350 m
Max. weight: 2400 kg
Speed: 90 m/min
Open the category

NOV 2738 UP F5

Passenger Hoist

Max. height: 350 m
Max. weight: 2700 kg
Speed: 55 m/min
Open the category

NOV 2738 UP F7

Passenger Hoist

Max. height: 350 m
Max. weight: 2700 kg
Speed: 70 m/min
Open the category

NOV 2738 UP F9

Passenger Hoist

Max. height: 350 m
Max. weight: 2700 kg
Speed: 90 m/min
Open the category

NOV 2942-2 UP F5

Passenger Hoist

Max. height: 350 m
Max. weight: 2900 kg
Speed: 55 m/min
Open the category

Comparison of lifts with lifting capacity up to 2000 kg

Type NOV 2032 UP NOV 2032 UP F4 NOV 2032 UP F5 NOV 2032 UP F7 NOV 2032 UP F9
Internal dimensions of the lift 1490 x 3100 x 2400 mm
Lift capacity 2000 kg
NOV 1832 UP NOV 1832-2 UP F4 NOV 1832-2 UP F5 NOV 1832-2 UP F7 NOV 1832-2 UP F9
Internal dimensions of the lift 1990 x 3100 x 2400 mm
Standard door clearance 2000 mm
Lift capacity 1800 kg
Maximum lift speed 35 m/min 45 m/min 55 m/min 70 m/min 90 m/min
Engine power 2 x 11 kW 2 x 11 kW 2 x 15 kW 3 x 11 kW 3 x 15 kW
Frequency converter - 45 kW 55 kW 75 kW 90 kW
Rated current [400V / 480V] 55 / 50 A 80 A / 69 A 100 A / 83 A 122 A / 112 A 150 A / 135 A
Starting current [400V / 480V] 275 A / 250 A 120 A / 103.5 A 150 A / 124.5 A 183 A / 168 A 225 A / 202.5 A
Main protection [400V / 480V] 63/D 90 A / 80 A 100 A / 90 A 125 A / 150 A 150 A / 150 A
Recommended fuse connection [400V / 480V] 70 A / 70 A 100 A / 90 A 125 A / 100 A 175 A / 150 A 175 A / 175 A
Counterweight - - - - -
Masts BH, S, (H in the shaft) BH, S, (H in the shaft) BH, S, (H in the shaft) BH, S, (H in the shaft) BH, S, (H in the shaft)
Max. lift height 350 m 350 m 350 m 350 m 350 m
Possibility to operate two elevator cages on one mast yes yes yes yes yes
Control Joystick / Buttons / Keyboard Joystick / Buttons / Keyboard Joystick / Buttons / Keyboard Joystick / Buttons / Keyboard Joystick / Buttons / Keyboard


When choosing equipment, you need to pay attention to its main characteristics. They are much better for Stros devices:

  • carrying capacity from 1,300 to 6,730 kg;
  • when working at a height of up to 9 meters, the mast need not be attached to the wall;
  • lifting speed from 35 to 90 meters per minute;
  • dimensions of the cab with a working area of up to 16 m2 and a ceiling height of up to three meters;
  • drive type: electric.

Czech machines have main and duplicating safety catches, emergency stop buttons, direct communication with the cab, etc.

Our company is the official supplier of Stros products in the UAE. Therefore, you can buy or rent branded cargo and passenger lifts from us at the cost recommended by the manufacturer.

COMPLETED PROJECTS

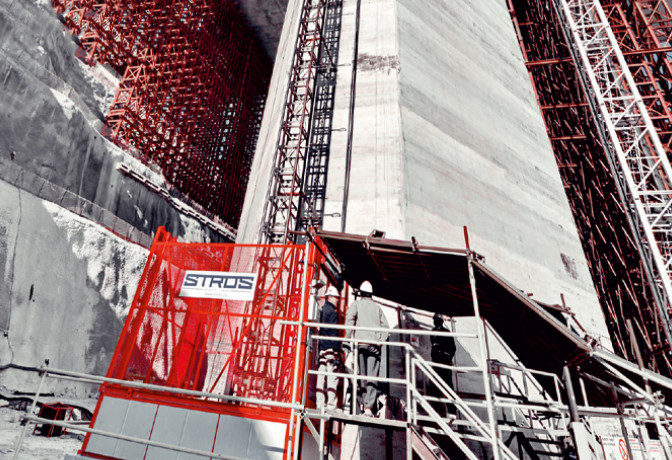

Turkey, Istanbul
3rd Bosphorus Bridge
Scope of work: installation and commissioning of the NOV 2032 UP F7, maintenance
Lifting height
320 m

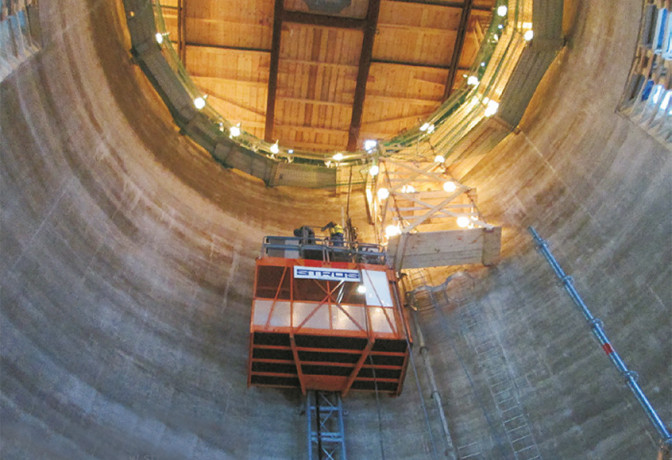

Narva, Estonia
Construction hoist
Scope of work: installation, commissioning of the lift NOV 2032 UP, maintenance
Lifting height:
188 m

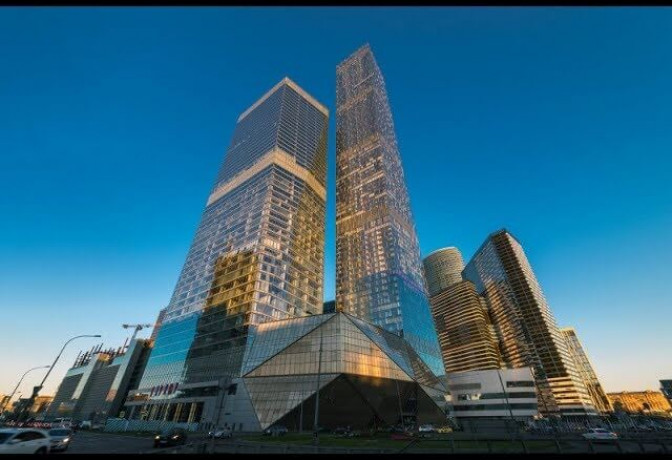

Russia, Moscow
OKO, Complex
Scope of work: installation and commissioning of the lift NOV 2032 UP II F7, maintenance
Customer:

Object:

Lifting height:
170 and 220 meters

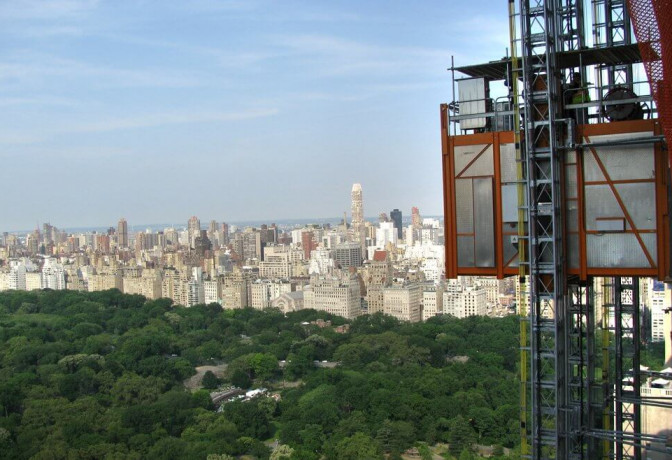

58th Street, NY, USA
Dual mast construction hoist
Scope of work: installation and commissioning of the lift NOV 5462 F7 W TWIN, maintenance
Object:

Lifting height:
310 meters
